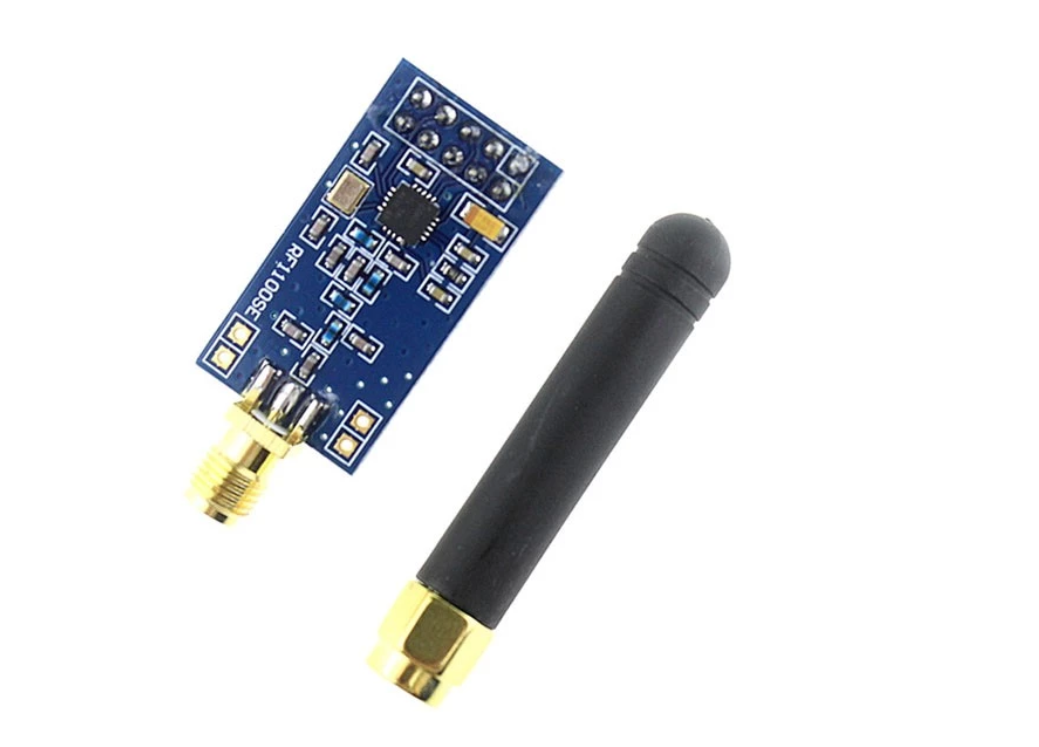

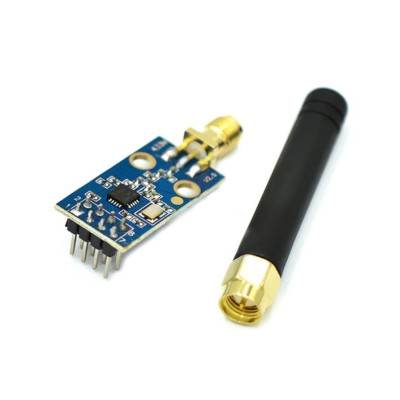

Modul Transceiver wireless CC1101 + antena SMA

Cod 00087
38,08 RON
În stoc
1
Detalii produs

Modul transmisie receptie CC1101 wireless plus antena SMA compatibil cu Arduino si alte placi de dezvoltare.


Tensiune alimentare: 1.8 - 3.6V

Curent maxim de functionare instant: <30ma>

Putere maxima transmisie: 10mW (+10dBm)


Specificatii:

315/433/868/915MHZ ISM band

Support 2-FSK, GFSK and MSK modulation

Receiver sensitivity -110dBm at 1200 baud

Minimum operating speed 1.2kbps, the highest 500kbps

Separate 64-byte RX and TX data FIFO buffer

Built-in hardware CRC error detection ensures reliable data transmission

Support RSSI signal strength detection and carrier sense function

Low power consumption

Mailing Address (256) Operating frequency can be programmed via SPI

Programmable output power, for all the support frequencies up to +10 dBm

WOR feature can be set to standby, the proportion receiving state timer switch time to reduce power consumption

Fast frequency synthesizer with proper frequency hopping system

Click poza pentru tutorial
