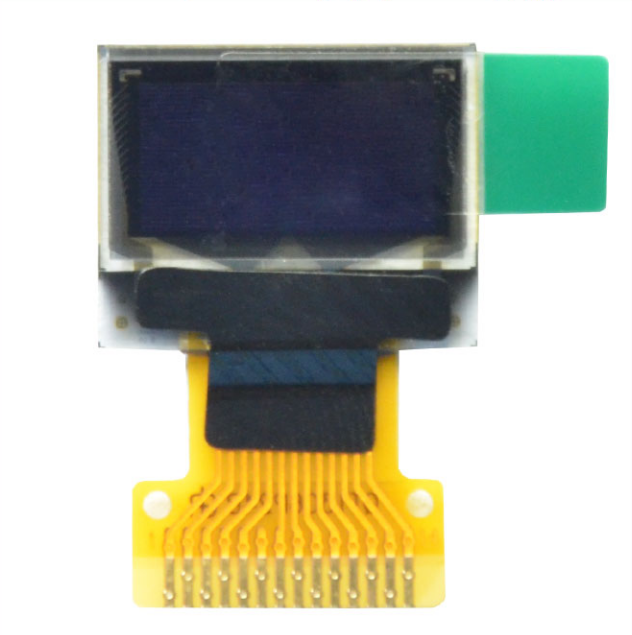

OLED 0.49 inch IIC 14 pini
28,92 RON
cu TVA
Trebuie sa te autentifici
Primeste o notificare prin e-mail atunci cand acest produs devine disponibil
LIVRARE GRATUITAAdauga in cos produse in valoare de 120 Ron
LIVRARE RAPIDA 24HExpediem in aceasi zi comenzile plasate pana in ora 14:00
REDUCERE 8%La toate comenzile minim 300 Ron
Display OLED mini
Tensiune alimentare: 3.3VDC
Rezolutie: 64x32
Culoare text: alb
Interfata: I2C IIC
Driver IC: SSD1306
Numar pini: 14
Marime pixel: 0,155*0,155mm
Temperatura operare: -40 - 85 C
Pin | Simbol |
1 | C2P |
2 | C2N |
3 | C1P |
4 | C1N |
5 | VBAT |
6 | VBREF(NC) |
7 | VSS |
8 | VDD |
9 | RES# |
10 | SCL |
11 | SDA |
12 | IREF |
13 | VCOMH |
14 | VCC |
