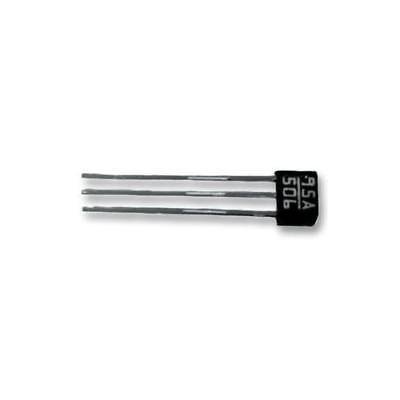

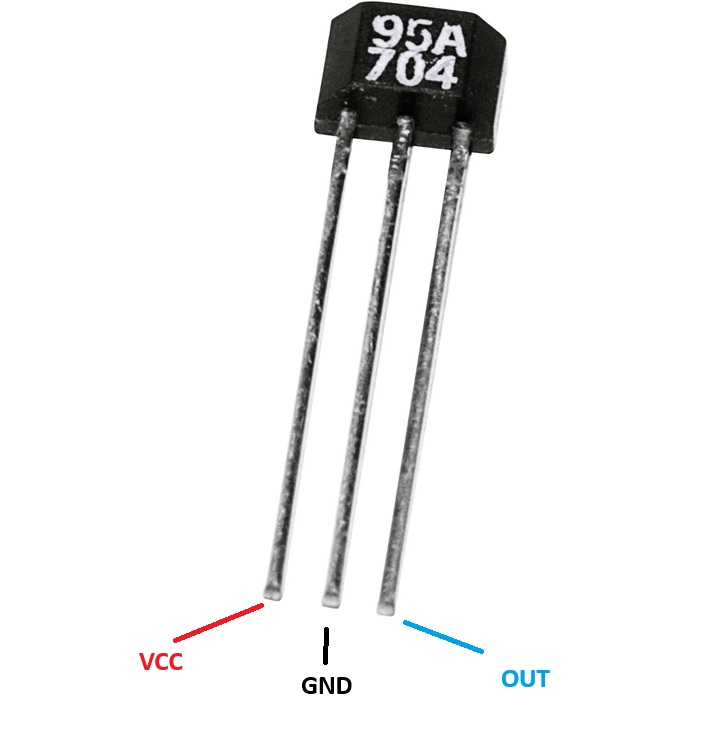

SS495A SS495A1 95A Solid State Sensor

Senzor ratiometric Hall bipolar SS495A SS495A1

Tensiune alimentare :4.5-10.5VDC
Output Configuration:Sink / Source
Sensor Housing:Rectangular
Switching Speed:3µs
Contact Configuration:Radial Lead IC
Input Current:8.7mA
Max Operating Temperature: 150C
Max Output Voltage: 0.2VDC
Max Supply Voltage: 10.5VDC
Max Supply Voltage: 10.5VDC
Min Supply Voltage: 4.5VDC
Min Temperature Operating: -40C
No. of Pins: 3
Response Time: 3µs
Sensor Type: Hall-Effect Linear Position Sensor
