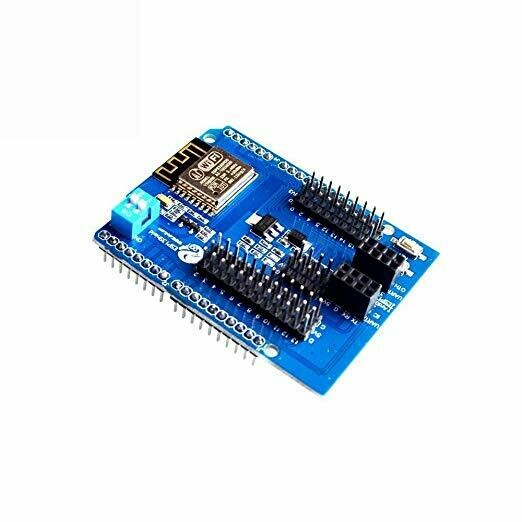

Shield UNO Web Server ESP8266 Wifi ESP-13

Shield UNO Web Server ESP8266 Wifi ESP-13

Cod 00266
47,60RON
În stoc
1
Detalii produs

Shield compatibil Arduino Uno R3 si Mega, Web Server cu Wifi ESP 8266, ESP-13.

Specificatii:

Standard WIFI: 802.11 b/g/n

Suport STA / AP, TCP / IP

Standard TCP / UDP Server si Client

Suport configurare serial port baud rate: 1200/2400/4800/9600/19200/38400/57600/74800/115200 bps


Suport serial data bits: 5/6/7/8 bits

Suport serial stop bits: 1/2 bit;

Compatibilitate pini: UNO, Mega
Arduino Pinout 2/3/4/5/6/7/8/9/10/11/12/13
ESP8266 GPIO Pinout 0/2/4/5/9/10/12/13/14/15/16 / ADC / EN / * UART TX / UART RX
KEY buton: configurare mod
Intrerupator Dual-Ports DIP: switching FOR Arduino and ESP8266;
WiFi consum curent: continuous transmission operation, ≈70mA (200mA MAX), idle mode: <200uA;
Serial WiFi transmission rate: 110-460800bps;
Temperatura: -40 ~ + 125 grade
