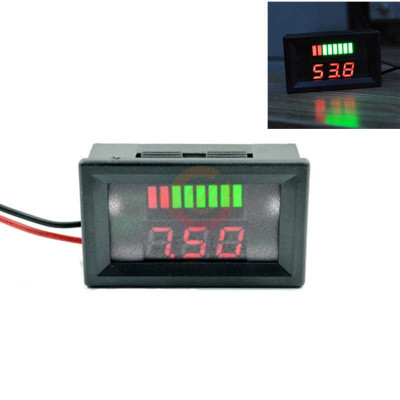

Battery status indicator voltmeter, 12-60V, with display
Read the 5 reviews
INTERNATIONAL DELIVERYInternational fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
FAST DISPATCH 24HWe ship from our stock within 24H
DISCOUNT 5%All orders minimum 100€
Panel voltmeter module with voltage indication and graphic display of the charge level of lead-acid type batteries.
The charging level indicator bar automatically identifies the type of battery connected (12V 24V 48V 60V).
Color LED display with red area to indicate a discharged battery.
The voltage is displayed in Blue or Red, depending on the batch.
Specifications:
Supported batteries: 12V / 24V / 36V / 48V / 60V
Measurement error: +- 1%
Resolution: 10% 20% 30% 40% 50% 60% 70% 70% 90% 100%
Working current: 5-15 mA
Refresh rate: 300ms
Dimensions: 48 x 29 x 22mm
Mounting hole: 46 x 27mm
Weight: 16g
Working temperature: -10 - 65 degrees C
