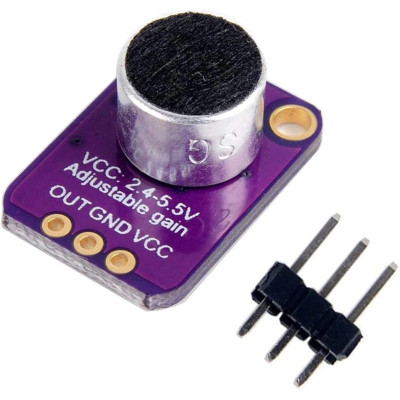

MAX4466 microphone module, with amplification, adjustable gain
zoom_out_map
chevron_left chevron_right

The images of the products are informative and may show minor differences, depending on the batch and the supplier. It is possible that the specifications and the price of the products can be changed without notice. We do our best to add the most accurate and correct specifications to the product page, but it is possible that they are not completely correct. if you identify such a case, please report this to us.

The product is intended for specialists and requires qualified and authorized personnel. The product does not include assembly/use instructions . Putting the product into operation by unqualified persons leads to the loss of the warranty according to the Terms and Conditions on the website.

MAX4466 microphone module, with amplification, adjustable gain, 2.3-5VDC

RON9.97
Tax included

Add to wishlist

You must be logged
  INTERNATIONAL DELIVERY

International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.

  FAST DISPATCH 24H

We ship from our stock within 24H

  DISCOUNT 5%

All orders minimum 100€

Microphone module with electret and amplifier, compatible with Arduino and other development boards. The board comes with a 20-20KHz electret microphone and an amplifier circuit that uses the integrated MAX4466 as an amplifier (op-amp) that has an excellent rejection of the noise caused by the power supply. The gain can be adjusted between 25X and 125X from the integrated potentiometer on the back of the module, from 200mVpp to 1Vpp with peaks up to 5Vpp for loud sounds. The stroke of the potentiometer is limited! Do not drive over the limit!

This module is best used with FFT (Fast Fourier Transform) type libraries that take the input signal and transform it into frequencies. Examples of interesting projects with this module are voice changes and audio-reactive projects. For best performance use the quietest power supply such as the 3.3V pin from an Arduino UNO.

The analog audio signal will be output on the OUT pin. This signal can be heard on some small headphones and, with the help of an amplifier, it can be played directly in the speakers. If you connect the OUT pin directly to the analog input of a development board, no other components are needed, it is connected directly to the ADC pin.

Specifications:

Supply voltage: 2.4 - 5VDC (optimal performance at 3.3VDC)

Output: Analog

Vpp: 200mVpp - 5Vpp

Gain: 25X - 125X, adjustable from the potentiometer

Amplifier: MAX4466

Login:

VIN: 2.4 - 5VDC

GND: GND, minus

OUT: Analog output
