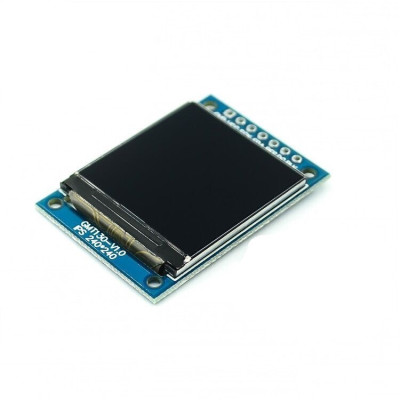

Display TFT 1.3", IPS, SPI, 65K colors, LCD ST7789V, 240x240, 7P
zoom_out_map
chevron_left chevron_right

The images of the products are informative and may show minor differences, depending on the batch and the supplier. It is possible that the specifications and the price of the products can be changed without notice. We do our best to add the most accurate and correct specifications to the product page, but it is possible that they are not completely correct. if you identify such a case, please report this to us.

The product is intended for specialists and requires qualified and authorized personnel. The product does not include assembly/use instructions . Putting the product into operation by unqualified persons leads to the loss of the warranty according to the Terms and Conditions on the website.

Display TFT 1.3", IPS, SPI, 65K colors, LCD ST7789V, 240x240, 7P

RON26.54
Tax included
rating Read the review
Average rating: 5/5 Number of reviews: 1

Add to wishlist

You must be logged
  INTERNATIONAL DELIVERY

International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.

  FAST DISPATCH 24H

We ship from our stock within 24H

  DISCOUNT 5%

All orders minimum 100€

1.3 inch IPS color display module, compatible with Arduino and other development boards. Careful! It supports voltage of 3.3V, both logic and power supply. Use a logic level converter if it is necessary to use with 5V boards.

This display communicates via SPI and the pixels are individually controllable, having a resolution of 240x240 RGB pixels. The LCD screen is TFT with realistic colors and IPS, which allows it to be viewed correctly from all angles.

It has backlight controllable through the dedicated BLK pin (Low Level is OFF).

Specifications:

Supply voltage: 3.3VDC

Logic voltage: 3.3VDC ( it is NOT compatible with 5V! Use a logic level converter )

Integrated: ST7789VW

Number of pins: 7

Communication: SPI

Screen size: 1.3 inches

Resolution: 240 x 240 pixels

Color: RGB

Type: LCD TFT, IPS

Operating temperature: -20 - +70 degrees C, without condensation

Dimensions mm: 39 x 28mm

Login:

GND: Ground, minus

VCC: 3.3VDC, plus

SCL: SCL Pin, Serial Clock

SDA: SDA Pin, Serial Data

RES: Pin Reset

DC: Pin Data Control

BLK: Backlight control pin

9522
6.50 g
Lib(AtMega328p)_+_Mod
rating 5
Ecran miniatural interesant (in special pentru non-hipermetropi). Merge din ArduinoIDE pe AtMega328p cu asta: https //github.com/cbm80amiga/Arduino_ST7789_Fast . CS accesabil prin mod: https //www.instructables.com/Adding-CS-Pin-to-13-LCD/ . Daca il rulati pe STM32F103C via ArduinoIDE, poate indicati cum.
