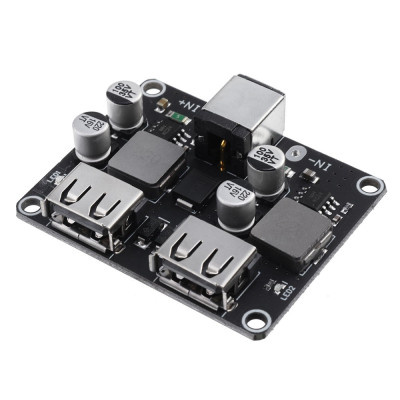

Dual QC3.0 module, 6-32V at 5V3.4A, 9V2.5A, 12V2A, 24W
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
All orders minimum 100€
QC3.0 fast charging module, with two USB outputs for charging various electronic devices.
The output voltage is automatically adjusted between 3 and 12VDC depending on the protocol detected for Fast Charge (standard 5V).
Specifications:
Supply voltage: 6 - 30VDC
Output: 5V/3.4A, 9V/2.5A, 12V/2A
Maximum power: 24W
Conversion efficiency: 90 - 97%
Input overvoltage protection: Yes
Input overcurrent protection: Yes
Output current protection: Yes
Short circuit protection: Yes
Temperature protection: Yes
Power supply: IN+ and IN- plugs or 5.5x2.1mm male connector
Dimensions mm: 40 x 50mm
Supported protocols:
DCP protocol, BC1.2, Apple, Samsung protocol
Huawei Fast Charge Protocol FCP/SCP
Huawei Fast Charge Protocol AFC
Spreadtrum Fast Charge Protocol SFCP
Qualcomm QC2.0 and 3.0
MTK PE1.1/PE2.0
