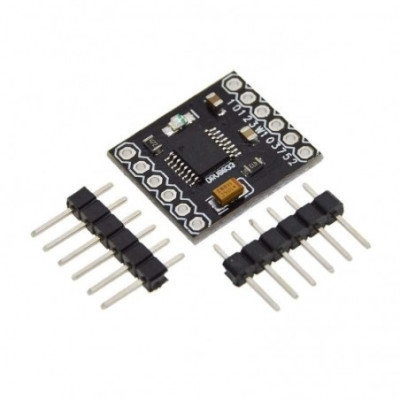

Motor driver module, dual H-bridge, DRV8833, 1.5A
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
All orders minimum 100€
Motor driver module, compatible with Arduino and other development boards, which uses the integrated DRV8833 which can drive a 4-wire stepper motor or two independent DC motors by using the dual H-bridge, with the help of a PWM signal for each motor separately.
It has protection against current, short circuit, low voltage and temperature. There is also a sleep mode that offers reduced energy consumption.
Specifications:
Supply voltage: 3 - 10VDC
Output current per motor: 1.5A, 2 motors
Dimensions mm: 18.5 x 16mm
Pinouts:
ULT: set to LOW enters sleep mode
OUT1, OUT2: channel 1 H-bridge controlled by IN1 and IN2
OUT3, OUT4: channel 2 H-bridge controlled by IN3 and IN4
EEP PIN: Output protection
VDC: 3-10VDC
GND: GND
Important : Bringing the IN pins of the same channel to the HIGH level together will burn the module!
In order to be able to set the sleep mode, it is necessary to remove the jumper J2. It is possible that it should be short to avoid entering the default sleep mode.
