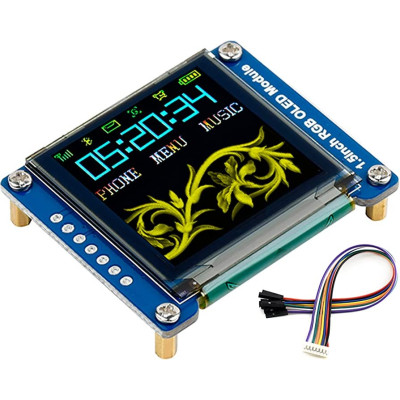

OLED display module, RGB, 1.5 inch, 65K colors, 6-bit, 128x128, SPI, 3.3-5V
International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.
We ship from our stock within 24H
All orders minimum 100€
The 1.5-inch OLED RGB display module, compatible with Arduino and other development boards, is a compact and versatile display that offers a vibrant and high-quality visual experience. It is equipped with a 1.5-inch OLED screen, 128x128 pixel resolution, capable of displaying 6 bits (64 intensity levels) and up to 65,000 colors. The display is optimized to provide clear, detailed images and vivid colors.
The module has an SPI (Serial Peripheral Interface) communication interface, which facilitates connection to a variety of hardware platforms, such as Arduino, Raspberry Pi and STM32. This allows the fast and efficient transfer of data between the host device and the display, ensuring a fast and accurate representation of the displayed information.
It supports SPI communication on 3 wires (3-Wire SPI) and on 4 wires (4-Wire SPI).
Specifications:
Working voltage: 3.3V - 5VDC
Consumption in operation: in general, below 100 mA
Screen size: 1.5 inches (diagonal)
Display Type: OLED
Resolution: 128x128 pixels
Pixel size: 0.045x0.194mm
Number of colors: 65,000 (16-bit)
Display: 6-bit RGB display for each primary color (red, green, blue)
Driver IC: 1351
Interface: SPI (Serial Peripheral Interface)
SPI pins: SCLK (clock line), MOSI (data line), CS (chip select line), D/C (command/data line)
Compatibility: Arduino, Raspberry Pi and STM32, but can also be used with other hardware platforms.
Additional features:
Backlight control
Fast response time and blur-free display
The 1.5-inch OLED RGB display module is ideal for projects that require a colorful and detailed display in a small space. It can be used in various applications, such as rapid prototyping, measuring devices, IoT (Internet of Things), games, watches and many others.
Use:
Detailed information and support can be found on the manufacturer's website (Waveshare): https://www.waveshare.com/1.5inch-rgb-oled-module.htm
Pin information:
VDC Power (3.3V/5V input)
GND Ground
FROM Data input
CLK Clock input
CS Chip selection, low active
AD 4-wire SPI: Data/Command selection (high for data, low for command)
3-wire SPI: connect to GND, keeping low level
RS Reset, low active
