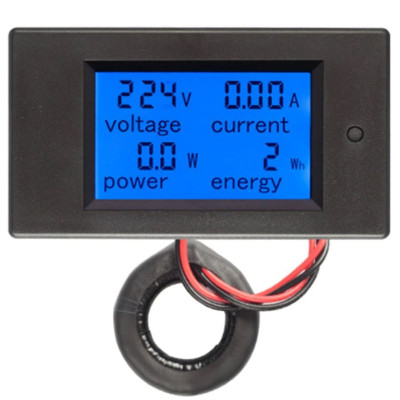

Panel AC monitor with CT, 4 in 1, 260VAC, 100A, PZEM-061

AC voltage monitor, monochrome, used to monitor 4 different values:

- Voltage in V

- Current in A

- Power in W

- Consumption in Wh

The assembly is of the panel type.

The current transformer ( CT , Current Transformer) is also included in the package.

The device saves the data when the power supply is interrupted and offers the possibility to set the alarm when a set power is reached.

Specifications:

Model: PZEM-061

Active power: 0-22KW - under 1KW display 0.0-999.9W, between 1KW and 10KW display 1000-9999W, over 10KW display 0.1-22KW

Electric energy: 0.00 - 9999KWh - under 10KWh display 0-9999Wh, over 10KWh display 10-9999KWh

Voltage: 80.0 - 260.0VAC (supply and measurement)

Current: 0 - 100.0A

Display: backlit LCD

Operating frequency: 45-65Hz

Nominal power: 100A/2200W

CT external diameter: 30mm

CT thickness: 17mm

Total mm dimensions: 90 x 50 x 25mm

Functions:

- Turning on the display: To turn on the screen, press the button briefly. The monitor has memory and keeps the screen in the ON or OFF state even in the event of a power failure.

- Reset energy consumption: Press for 5 seconds until the energy consumption value flashes. A short press will reset the counter. To cancel, press the button again for 5 seconds.

- Alarm setting: Long press of the button until "SET CLr" is displayed. A short press will change the flashing value (digit) by plus 1. In 3 seconds of inactivity, the digit moves by one position. Once the setting is complete, press and hold the button for 5 seconds.
