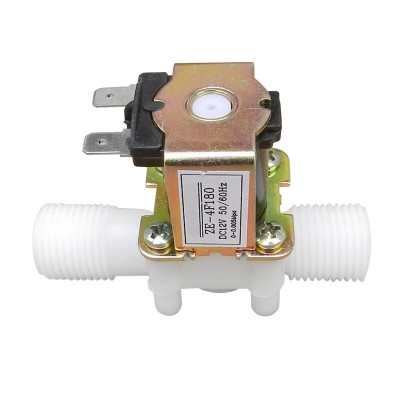

Solenoid valve 12V, Water/Air, N/O, 1/2
zoom_out_map
chevron_left chevron_right

The images of the products are informative and may show minor differences, depending on the batch and the supplier. It is possible that the specifications and the price of the products can be changed without notice. We do our best to add the most accurate and correct specifications to the product page, but it is possible that they are not completely correct. if you identify such a case, please report this to us.

The product is intended for specialists and requires qualified and authorized personnel. The product does not include assembly/use instructions . Putting the product into operation by unqualified persons leads to the loss of the warranty according to the Terms and Conditions on the website.

Solenoid valve 12V, Water/Air, N/O, 1/2

RON35.44
Tax included
rating Read the 2 reviews
Average rating: 3.5/5 Number of reviews: 2

Add to wishlist

You must be logged
  INTERNATIONAL DELIVERY

International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.

  FAST DISPATCH 24H

We ship from our stock within 24H

  DISCOUNT 5%

All orders minimum 100€

Electromagnetic valve (electrovalve) that allows the circuit to be closed when a voltage of 12VDC is applied with the help of a solenoid.

The model is Normally Open (when 12V voltage is applied, the valve closes).

It is not indicated for use in gravity fed systems.

Specifications:

Supply voltage: 12VDC

Recommended current: 0.6-1.5A

Connection size: 1/2"

Material: Metal + plastic

Pressure: 0.02-0.8Mpa

Maximum liquid temperature: 100°C

Operating mode: Normally Open, N/O, Normally Open

Valve type: diaphragm

Use: water and liquids with reduced viscosity

Dimensions mm: 78 x 60mm

Inner diameter: 13.5mm

Outer diameter: 20mm

Flow characteristics:

0.02MPa: ＞3L/min

0.1MPa: 5L/min

0.3MPa: ＞10L/min

0.8MPa: ＜25L/min

9234
104.55 g
era mai destept proiectata daca era pe invers!
rating 2

teoretic poate fi ok piesa ! practic insa ar fi fost infinit mai desteapta daca era proiectata mai inteligent adica exact invers... Mai concret, pe NORMAL INCHIS, adica la disparitia , caderea, avaria, economisirii alimentarii etc valva sa se inchida automat. Asta intrucat in general fluxul de apa implica un consum, utilizarea apei este in cele mai multe cazuri pe intervale mai scurte decat starea de nefolosire (deschizi robinetul sa te speli, sa cureti ceva, sa irigi dupa un anume program ca doar nu inunzi iar apa trebuie la randul ei si contorizata dar si pompata deci alte consumuri si energii). Nu mai punem situatiile oricand incidente posibile de cadere alimentari, epuizare baterii de control si monitorizare etc si atunci ce faci, lasi vana deschisa??? In concluzie astept si versiunea cealalta...

Answer:

Buna ziua, exista si varianta N/C, Normal Inchisa, disponibila. Nu este o greseala de proiectare, asa a fost facuta pentru cazurile unde este nevoie de acest tip de functionare, de tip N/O.

Recomand
rating 5
Produs ok primit foarte rapid decamdata isi fac treaba pentru ce au fost comandate.
