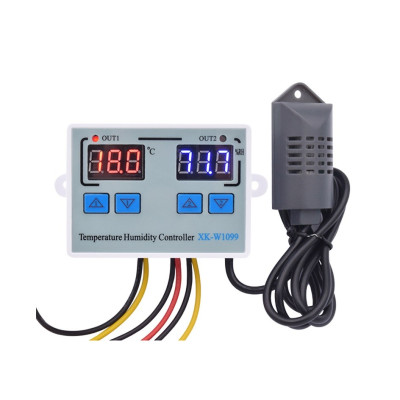

Thermostat W1099, Temperature and humidity, 12V, 10A

Thermostat W1099 that allows the control of two devices simultaneously. It presents two sensors, one for temperature and one for humidity, which can control two individual outputs. It is powered by a 12VDC DC source. The outputs directly present the supply voltage when the thermostat activates the respective channel.

Both temperature and humidity can be calibrated.

The thermostat can work in heating or cooling mode, depending on the equipment connected to it, this means that the start temperature can be set lower or higher than the stop temperature. The same is true for humidity, meaning that a humidification or dehumidification equipment can be connected.

The display shows temperature and humidity on separate displays that have different colors (red temperature, blue humidity).

Specifications:

Supply voltage: 12VDC

Output: Input voltage (Direct Output), 12VDC

Model: XK-W1099

Material: ABS plastic

Measured temperature: 0 - 100 degrees C

Measured humidity: 1 - 99% RH

Accuracy: +-1 degree, 0.1 %RH

Output: Two relays, maximum 10A

Sensor wire length: 1 meter

Dimensions mm: 75 x 56 x 31

Login instructions:

Instructions for use:

Set the starting temperature:

Press the Up button① once to display the starting temperature.

Long press the Up button① for about 3 seconds until the start temperature number flashes. The required temperature can be set with the Up① and Down① buttons.

Set the shutdown temperature:

Press the Down① button once to display the shutdown temperature.

Long press the Down button① for about 3 seconds until the shutdown temperature number flashes. The required temperature can be set with the Up① and Down① buttons.

Set the starting humidity:

Press the Up② button once to display the starting humidity.

Long press the Up button① for about 3 seconds until the starting humidity number flashes. The required temperature can be set with the Up② and Down② buttons.

Set the shutdown humidity:

Press the Down② button once to display the stop humidity.

Long press the Down button② for about 3 seconds until the stop humidity number flashes. The required humidity can be set with the Up② and Down② buttons.

Temperature correction (humidity):

Press the Up① and Down① buttons at the same time for 3 seconds to display 0.0, then set the value by pressing the Up① and Down① buttons.

Positive value = Measured value + Corrected value (Humidity correction is the same method, pressing the Up② and Down② buttons. )

Reset:

When the power is on, long press the Down① and Down② buttons at the same time for 3 seconds. The reading shows 888, and then the controller automatically jumps to the detected temperature (humidity).

Operating modes:
