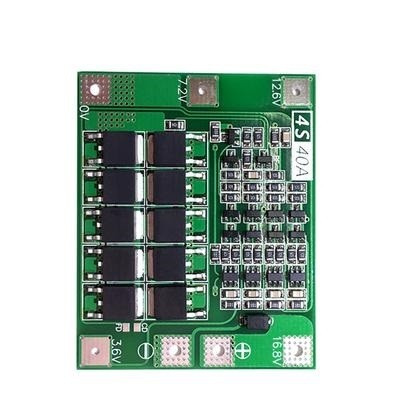

BMS module 4S, 40A, 16.8V
zoom_out_map
chevron_left chevron_right

The images of the products are informative and may show minor differences, depending on the batch and the supplier. It is possible that the specifications and the price of the products can be changed without notice. We do our best to add the most accurate and correct specifications to the product page, but it is possible that they are not completely correct. if you identify such a case, please report this to us.

The product is intended for specialists and requires qualified and authorized personnel. The product does not include assembly/use instructions . Putting the product into operation by unqualified persons leads to the loss of the warranty according to the Terms and Conditions on the website.

BMS module 4S, 40A, 16.8V

RON20.99
Tax included
rating Read the 4 reviews
Average rating: 5/5 Number of reviews: 4

Add to wishlist

You must be logged
  INTERNATIONAL DELIVERY

International fast shipping within EU. Free Shipping for orders above 100 EUR in most EU countries.

  FAST DISPATCH 24H

We ship from our stock within 24H

  DISCOUNT 5%

All orders minimum 100€

BMS board for lithium batteries, "enhanced" version.

The module represents a protection for charging lithium batteries (example 18650), type BMS (Battery Management System) for cells with a nominal voltage of 3.7V (4.2V charged).

Can be used to create tool batteries.


Specifications:

Version: Enhanced (no balance)

Battery charging voltage: 16.8

Maximum discharge current: 40A (with good heat dissipation)

Maximum charging current: 20A ( check the battery specifications )

Dimensions mm: 45 x 55 x 3.4mm

4s_electrical_parameters_jpg

bms_4s_wiring_jpg


33612
10.11 g
Data sheet
Number of cells
4S
Technology
Lithium Ion
Load voltage
16.8VDC
sway
Not
Nominal Current
ok, dar...
rating 5
Nu recomand ptr. masina de gaurit si insurubat (Black&Decker, 14,4v). La pornire brusca se opreste imediat, daca pornesc incet, ne da puterea corespunzatoare. Pe de alta parte, este ok. robust, placaj de calitate. O voi folosi cu descarcare directa, de la bornele acc. (pana tine motorul).
ok
rating 5
f,multumit
OK!
rating 5
F.BUN
modul
rating 5
e ok
