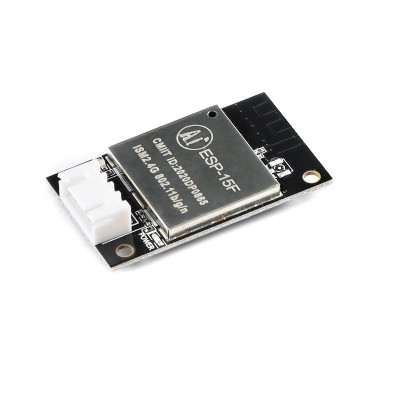

ESP-15F module, ESP8266, Serial, WiFi, 32-bit, 5V

The ESP-15F module, compatible with Arduino and other development boards, is a wireless communication module that uses the Wi-Fi standard for data transmission. It is based on the ESP8266 microcontroller with a 32-bit architecture and works with a 5-volt supply voltage.

The module is designed to be connected to a device via the serial port. It has a UART interface and supports transfer rates of 115200 bits per second. It can be used in a variety of applications that require wireless connectivity, such as building automation, controlling IoT devices and more.

The module offers support for WEP, WPA-PSK/WPA2-PSK security protocols, which makes it suitable for applications that require high security. It also has low energy consumption.

The board comes with a connection interface with a PH2.54 plug, (the Tata plug with the necessary wires are not included in the package) 4 pins that allow access to the VCC, GND, RX and TX pins. A total of 8 pins are available on the board.

The antenna is integrated directly into the PCB, without the need to add an external one.

Specifications:

Microcontroller: ESP8266, AI Thinker

Architecture: 32 bits

Supply voltage: 5VDC

Logic voltage: 3.3VDC

Supply current: greater than 800mA

Interface: UART, GPIO, ADC, PWM

Serial port transfer rate: 110 - 4608000 bps, default 115200 bps

Flash SPI: 32Mbit

Connection: XH-2.54 plug, 4 pins

Number of pins: 8

Transfer rates: up to 115200 bits per second

WiFi: 2.4GHz

Supported security protocols: WEP, WPA/WPA2

WiFi power: 16dBm

WiFi protocol: 802.11b/g/n

Working frequency: 2400 - 2483.5MHz

Dimensions: 41.3 x 24.1 x 6.6mm

Pinouts:

Description of pins:

TXD: UARTO_ TXD (default 5V)

RXD: UARTO_ RXD (default 5V)

GND: Ground

VCC: Power supply 5VDC, recommended source current 1A

IO4: GPIO4 reserved interface

IO0: GPIO0 - Download mode: Pull Down. Operating mode: float or Pull Up

EN: chip enable terminal, active at high level

IO5: GPIO5 reserved interface
